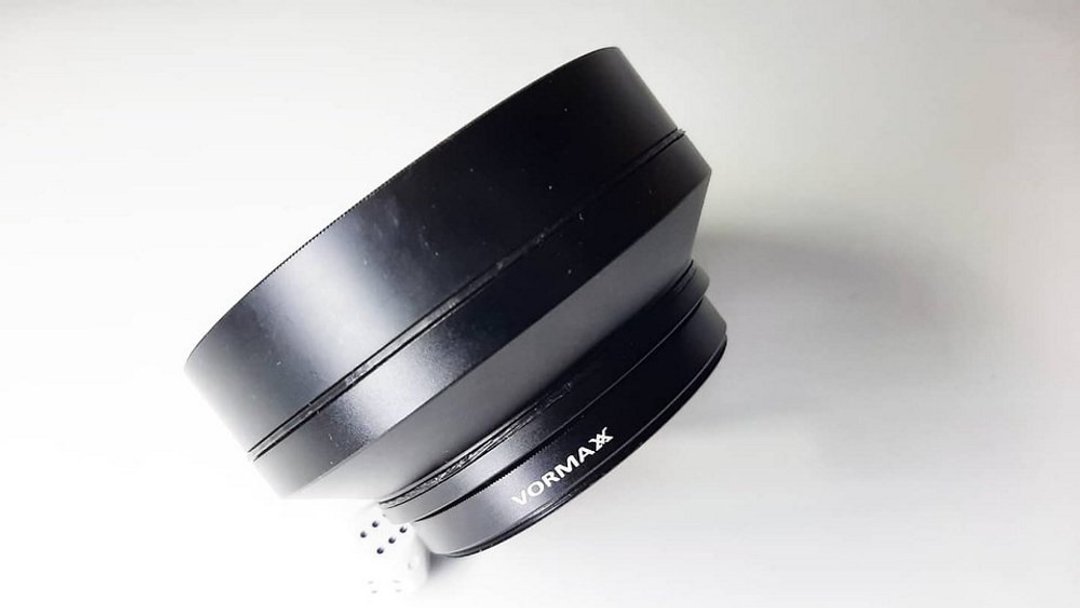

Anamorphic adapter Luxanamorphic Vormaxlens 1.33x rev.2

The adapter works with all formats and cameras. The adapter is compatible with Canon RF and ARRI LF lenses. The adapter is very wide and does not give vignetting with a fixed 28 mm lens on a full frame (without a clamp). It best used with Mir-1 37mm, Mir-24 35mm, Canon 40mm 2.8 lens. Vignetting is absent on the crop sensor 1.6 and 1.5 with a 18 mm focal length. The crop 2 sensor (micro 4/3, 16 mm sensor) lacks vignetting at a focal length of 14 mm. It is made in a metal case, optics - glass. The lenses have multi-illumination. The adapter has a diameter of 95 mm thread for the light filter. The mounting diameter thread is 67/72 mm (under the order). Attachment of the adapter is carried out directly to the taking lens or through a special clamping device (clamp) to align the adapter horizontally. The clamp is sold separately, made in a simple ring design with external and internal thread and the ability to fix in the desired position with adjustable or hidden bolts. The adapter can focus on lenses from 14 mm to 80 mm. But it all depends on the choice of the taking lens of the device. It is desirable that the diameter of the front lens of the taking lens is less than 70 mm. Most of clarity occurs at a distance of 10 meters to 20 meters. Depending on the optical design of the taking lens at a distance closer than 3 meters may need diopters +0.5/+1. If necessary, close-range shooting, if there are no diopters – you can clamp the diaphragm of the taking lens. The sharpness at infinity is in acceptable quality. Close-Up filter Vormaxlens 95 mm +0,5 diopter 1/2 Close-Up Filter Vormaxlens 95 мм +1 diopter The adapter may have structural differences that do not affect the main characteristics.
