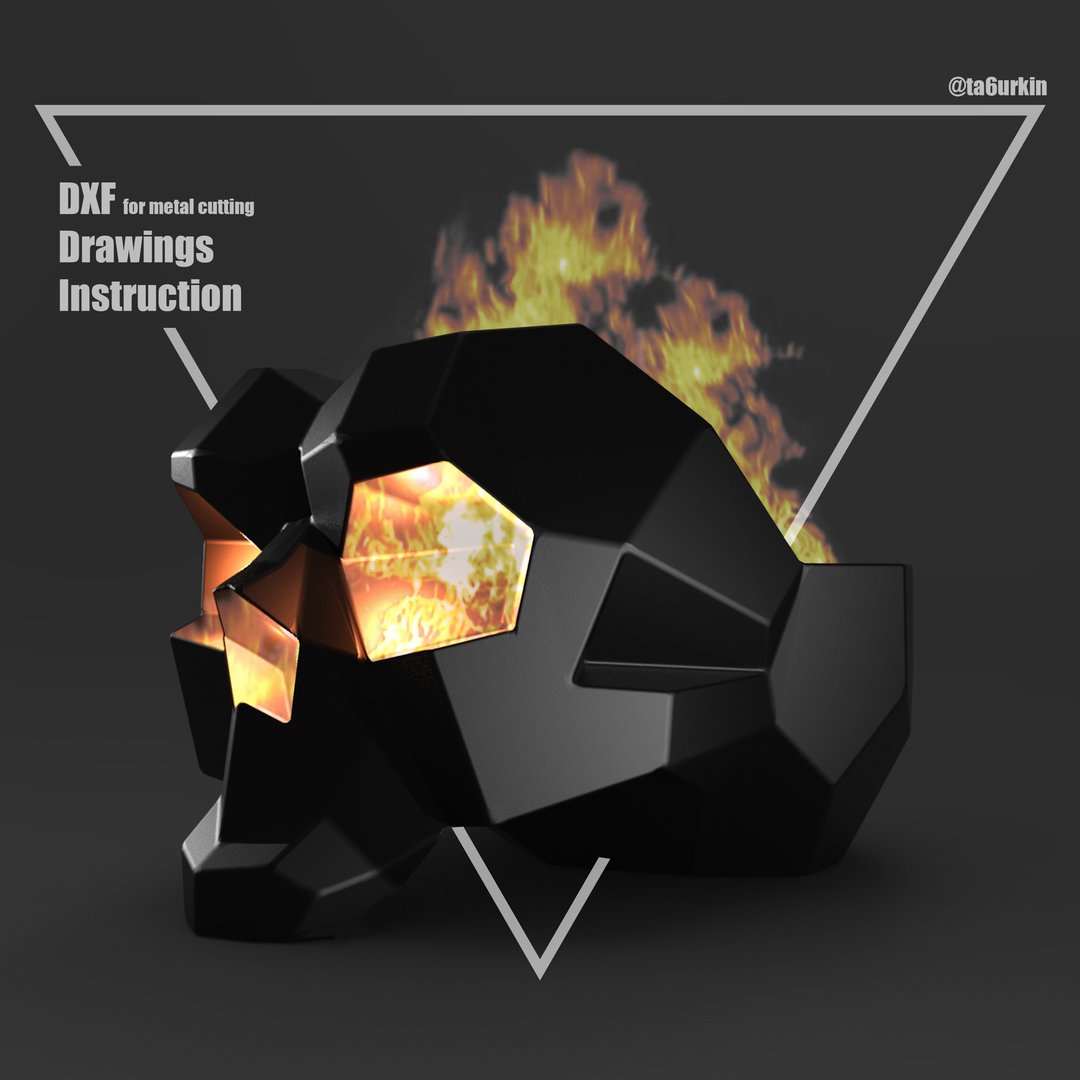

Sheet Metal Skull Fire Pit Project (dxf, PDF)

NOTE: Please read all description. This is a digital product (there is no physical product) intended for the independent production of sheet metal products. You should be able to cut out parts on a CNC metal cutting machine or manually with a convenient cutting tool using a stencil (for example, a grinder). Also, you should be able to bend the parts on a bending machine or manually, at the end welding the parts together according to the instructions and, if desired, cleaning and painting the finished product. The project includes a .zip archive. Project description: Fire Pit skull involves the manufacture of steel with a thickness of 1.5 mm and a bending radius of 1 mm (It is advisable to cut the mesh removable bottom from thicker steel, about 3mm). But this is the minimum thickness of the metal, if you make it thinner, the metal can bend under the influence of temperature, you can use even thicker metal, for example 2mm, see the thickness in the drawing.The weight of the fire pit is about 16 kg. There are 30 details in total. The design documentation includes 22 pages, 17 of which are bending drawings. The instruction includes 12 pages in the order of assembly. The bend line is drawn along the cutouts in the part, in accordance with the drawing.The archive includes: dxf (20 pcs.- files separately), Drawings (22 pages), Instructions (12 pages). HOW TO BUY: - Place item in your shopping cart - When checkout please MAKE SURE TO LEAVE YOUR E-MAIL in the box "Note to designer" - Choose a payment method and confirm the order - After the payment is completed, I will send the project to the email address you left within a day Files sent to your e-mail are not subject to distribution and resale (dxf, PDF drawings, PDF instructions). This project is for you and your production. If you need to create a stencil for printing in PDF format or create a DXF file with all the parts located on the sheet metal format you need, please contact me on instagram (@ta6urkin), by e-mail, or contact me as a seller on Pinkoi. This is a digital product, you can return the money until the moment I send you the project by e-mail. Thank you and good luck with your work!
